693071010811 – Memory Card Connectors WR-CRD SD Micro Card 8Pin Push & Push

Description

Manufacturer: Wurth Elektronik
Product Category: Memory Card Connectors
RoHS: Details
Product: Card Connectors
Card Type: microSD
Type: –
Number of Contacts: 8 Contact
Number of Rows: 1 Row
Pitch: 1.1 mm
Termination Style: SMD/SMT
Current Rating: 500 mA
Mounting Style: PCB Mount
Contact Plating: Gold
Packaging: Reel
Packaging: Cut Tape

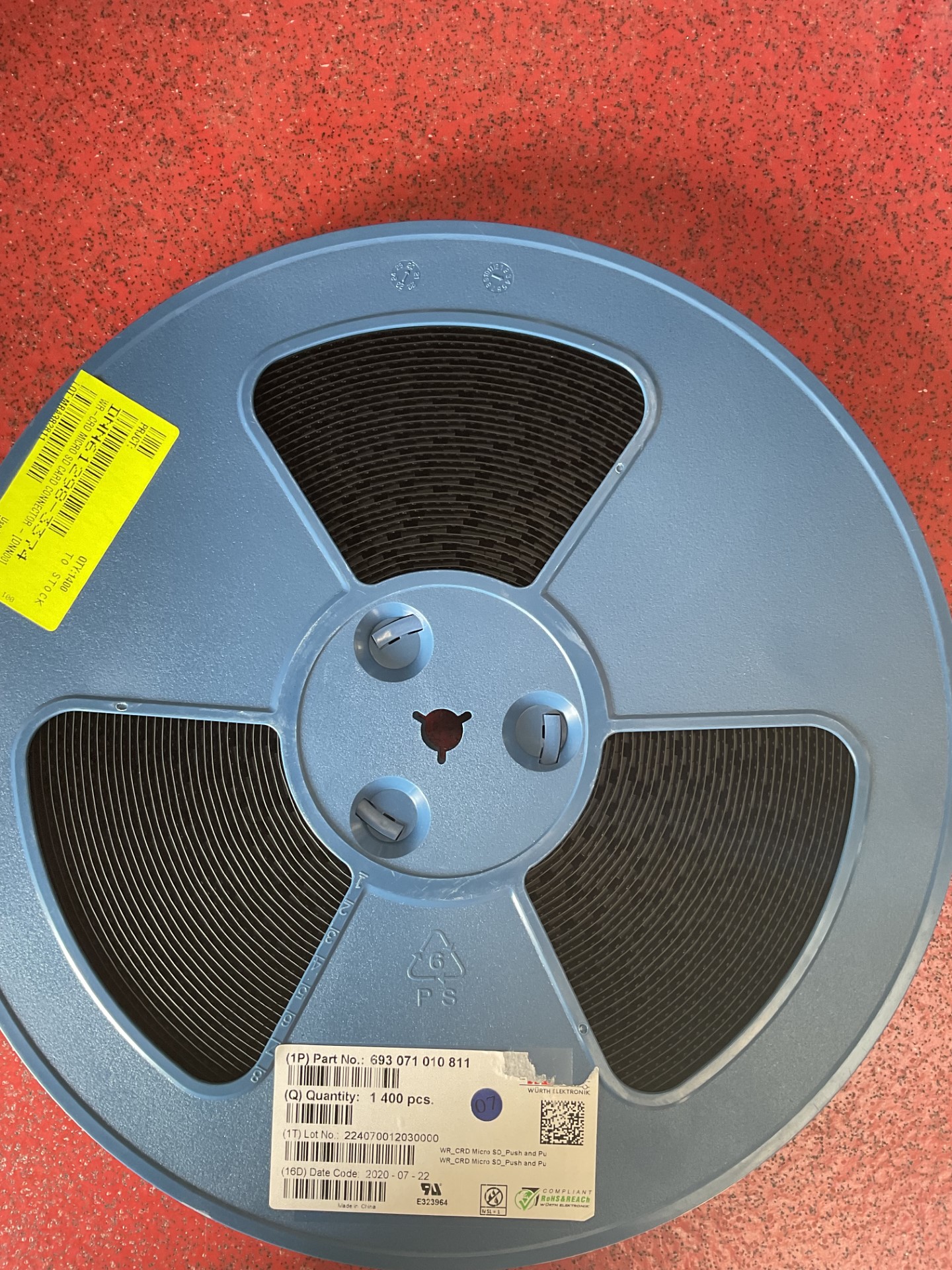

Packaging: MouseReel
Accessory Type: –
Brand: Wurth Elektronik
Contact Material: Copper Alloy
Features: With card detection
Flammability Rating: UL 94 V-0
Height: 1.83 mm
Housing Material: Liquid Crystal Polymer (LCP)
Insertion – Extraction Style: Push-Push
Insulation Resistance: 1000 MOhms
Latch Color: –
Length: 15.2 mm
Mating Cycles: 10000
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: – 25 C
Orientation: Right Angle
Product Type: Memory Card Connectors
Row Spacing: –
Series: WR-CRD MICRO SIM
1400
Subcategory: Memory Connectors & Sockets
Voltage Rating: 100 VAC
Unit Weight: 460 mg
