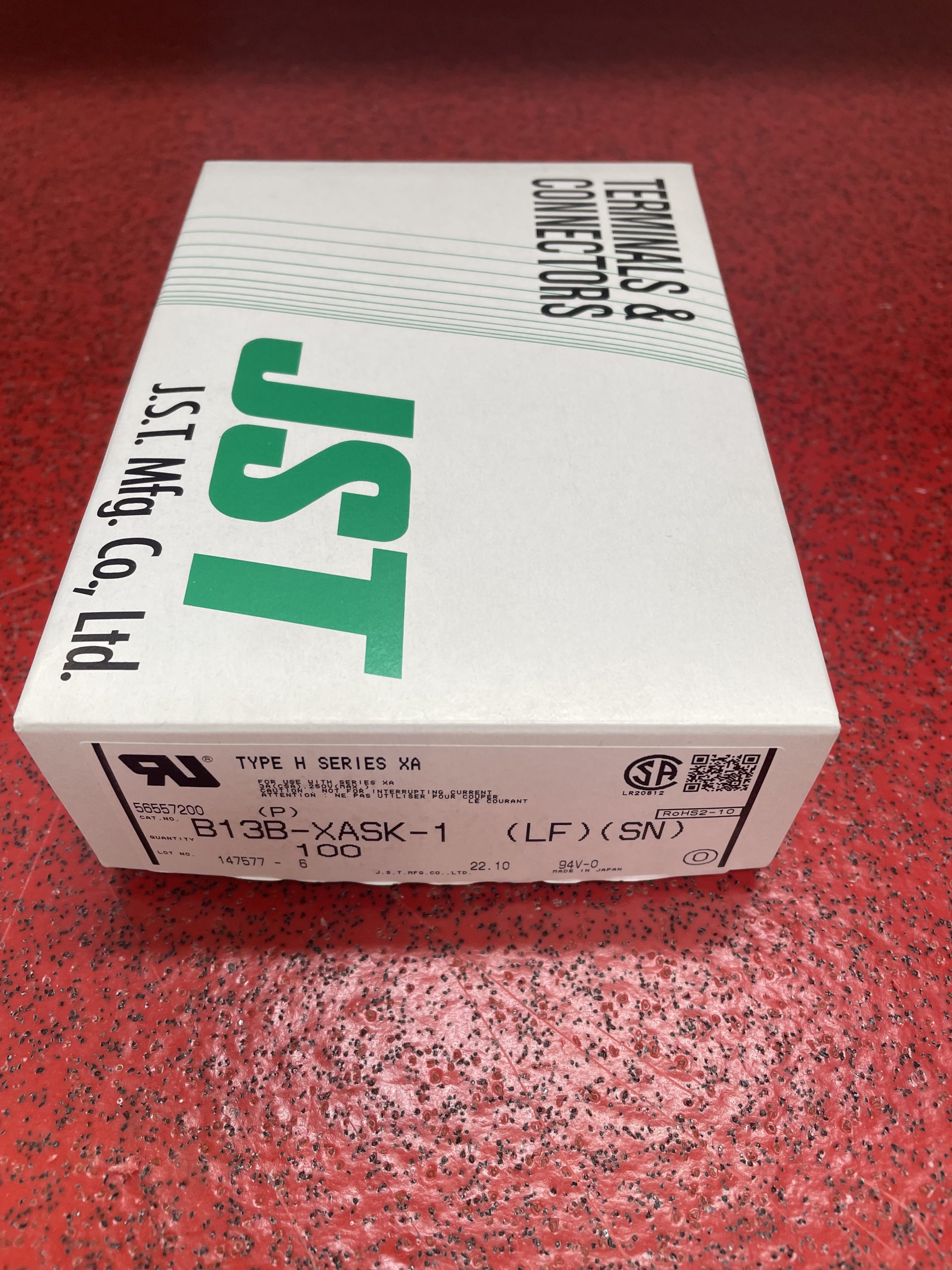

B13B-XASK-1(LF)(SN)

Description

TYPE
DESCRIPTION
SELECT ALL
Category
Connectors, Interconnects
Rectangular Connectors
Headers, Male Pins
Mfr
JST Sales America Inc.
Series
XA
Packaging
Bulk
Part Status
Active
Connector Type
Header
Contact Type
Male Pin
Pitch – Mating
0.098″ (2.50mm)
Number of Positions
13
Number of Rows
1
Row Spacing – Mating
–
Number of Positions Loaded
All
Style
Board to Cable/Wire
Shrouding
Shrouded – 4 Wall
Mounting Type
Through Hole
Termination
Press-Fit, Solder
Fastening Type
Locking Ramp
Contact Length – Mating
–
Contact Length – Post
0.134″ (3.40mm)
Overall Contact Length
–
Insulation Height
0.346″ (8.80mm)
Contact Shape
Circular
Contact Finish – Mating
Tin
Contact Finish Thickness – Mating
–
Contact Finish – Post
Tin
Contact Material
Copper Alloy
Insulation Material
Polyamide (PA66), Nylon 6/6, Glass Filled
Features
–
Operating Temperature
-25°C ~ 85°C
Ingress Protection
–
Material Flammability Rating
UL94 V-0
Insulation Color
Natural
Current Rating (Amps)
3A
Voltage Rating
250V
Mated Stacking Heights
11.3mm
Contact Finish Thickness – Post
–
Applications
–
Base Product Number
B13B-XAS
