PT100 Class A sensor – Low Temp RTD Sensor – 4-Wire RTD Probe, Hermetically Sealed – 060520-CR-1

General Overview

Product name 4-Wire RTD PT100 – Class A Sensor

Length (Probe and cable) 1198 mm ± 20 mm (47.2 in ± 0.8 in)
Probe section diameter 4.0 mm (0.16 in)
Cable diameter 2.5 mm (0.9 in)

Temperature range -100°C to 200°C
Class A Tolerance -50°C to 200°C
Class B Tolerance -100°C to -50°C
Stainless steel tube (SS 304) 50 mm
Long term drift <0.1°C/year

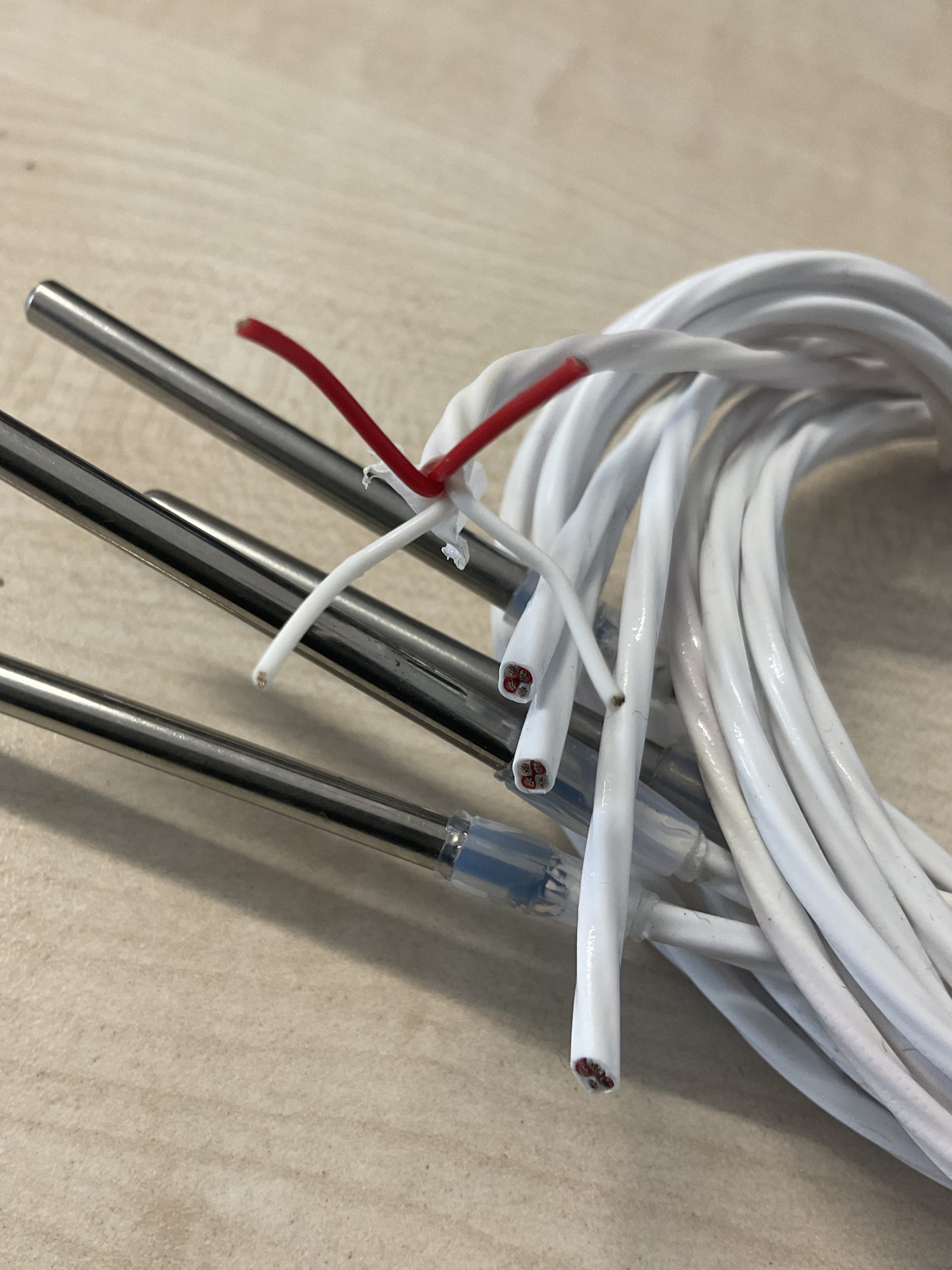

Cable
4-Wire, white jacket cable
PFA Teflon™ Insulated
24AWG Stranded
2 × red lead wires, 2 × white lead wires
