Description

Manufacturer: onsemi
Product Category: Operational Amplifiers – Op Amps
RoHS: N
Number of Channels: 4 Channel
GBP – Gain Bandwidth Product: 4.5 MHz
SR – Slew Rate: 13 V/us
Vos – Input Offset Voltage: 3 mV
Ib – Input Bias Current: 500 nA
Supply Voltage – Max: 44 V, +/- 22 V
Supply Voltage – Min: 3 V, +/- 1.5 V
Operating Supply Current: 7.6 mA
Output Current per Channel: 30 mA
CMRR – Common Mode Rejection Ratio: 80 dB
en – Input Voltage Noise Density: 32 nV/sqrt Hz

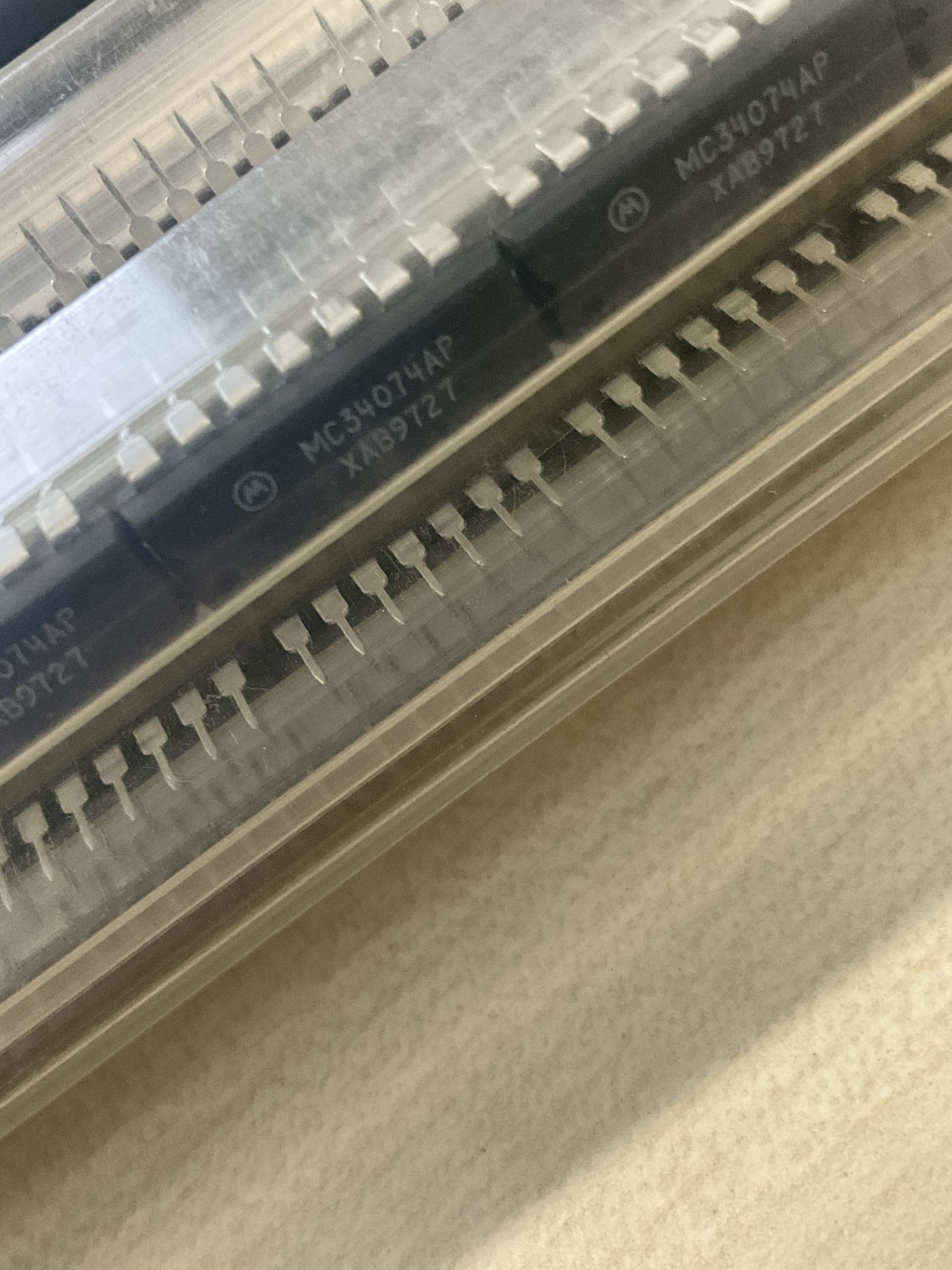

Package/Case: PDIP-14
Mounting Style: Through Hole
Shutdown: No Shutdown
Minimum Operating Temperature: 0 C
Maximum Operating Temperature: + 70 C
Series: MC34074A
Packaging: Tube
Amplifier Type: General Purpose Amplifier
Brand: onsemi
Dual Supply Voltage: +/- 3 V, +/- 5 V, +/- 9 V
Height: 3.68 mm (Max)
In – Input Noise Current Density: 0.22 pA/sqrt Hz
Length: 19.56 mm (Max)
Maximum Dual Supply Voltage: +/- 22 V
Minimum Dual Supply Voltage: +/- 1.5 V
Operating Supply Voltage: 3 V to 44 V, +/- 1.5 V to +/- 22 V
Product: Operational Amplifiers
Product Type: Op Amps – Operational Amplifiers
PSRR – Power Supply Rejection Ratio: 80 dB
500
Subcategory: Amplifier ICs
Supply Type: Single, Dual
Technology: Bipolar
Vcm – Common Mode Voltage: Negative Rail to Positive Rail – 1.8 V
Voltage Gain dB: 100 dB
Width: 6.6 mm (Max)
Unit Weight: 1.620 g
