SQJ431AEP-T1_GE3

Description

Manufacturer: Vishay
Product Category: MOSFET
RoHS: Details
Technology: Si
Mounting Style: SMD/SMT
Package/Case: PowerPAK-SO-8L-4
Transistor Polarity: P-Channel
Number of Channels: 1 Channel
Vds – Drain-Source Breakdown Voltage: 200 V
Id – Continuous Drain Current: 9.4 A
Rds On – Drain-Source Resistance: 305 mOhms
Vgs – Gate-Source Voltage: – 20 V, + 20 V
Vgs th – Gate-Source Threshold Voltage: 5 V
Qg – Gate Charge: 55 nC
Minimum Operating Temperature: – 55 C
Maximum Operating Temperature: + 175 C
Pd – Power Dissipation: 68 W
Channel Mode: Enhancement
Tradename: PowerPAK
Series: SQ
Packaging: Reel

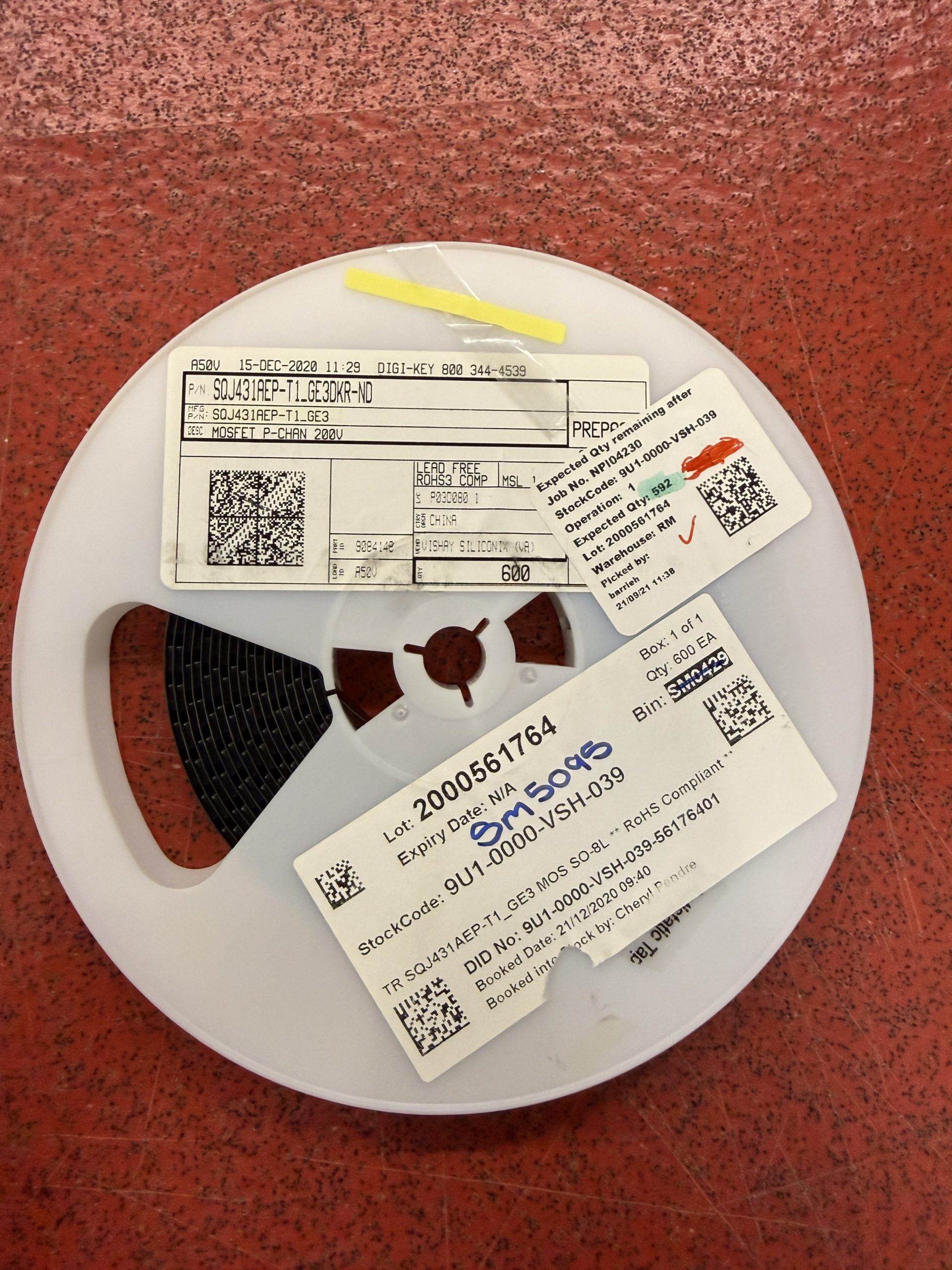

Packaging: Cut Tape

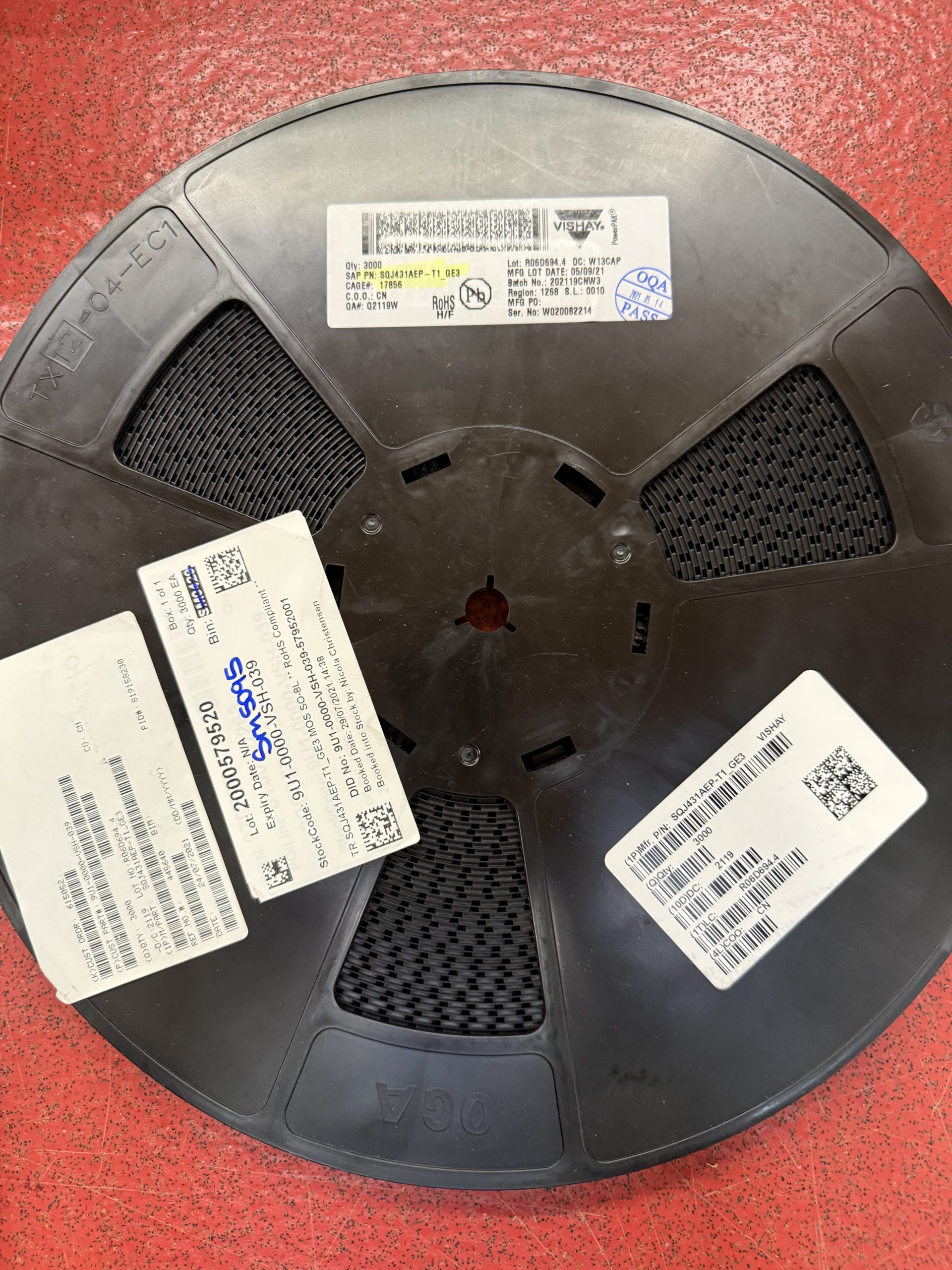

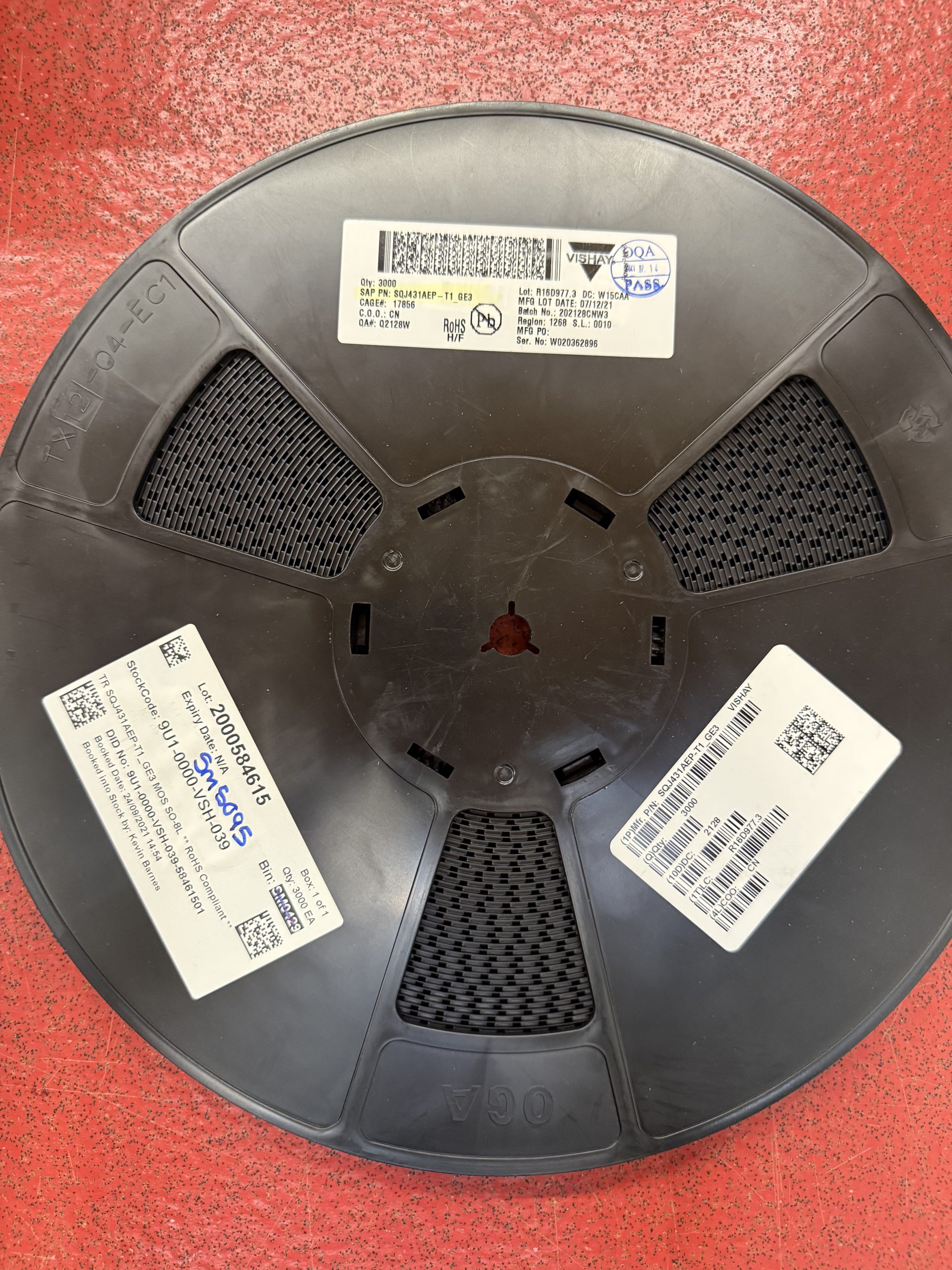

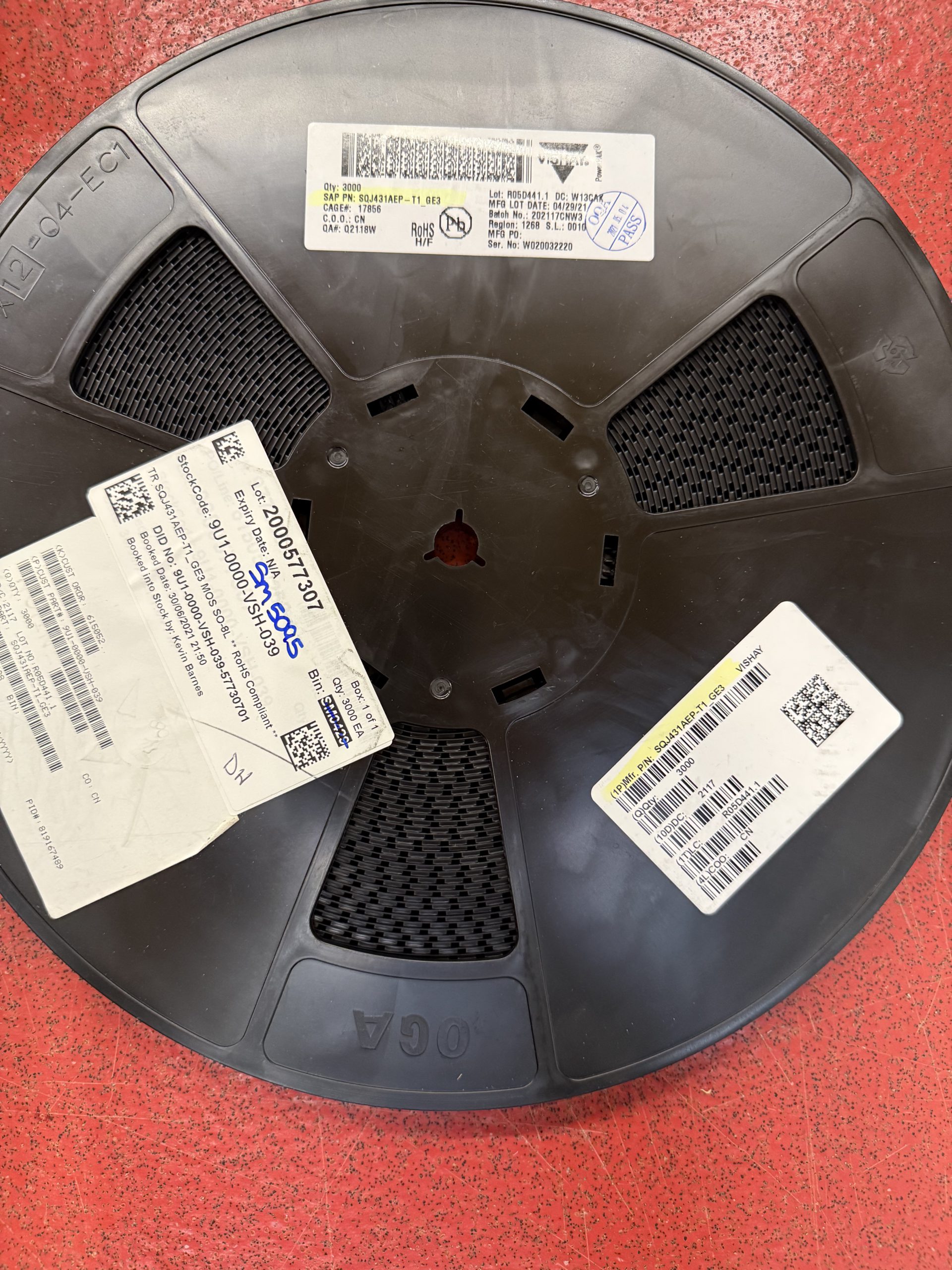

Packaging: MouseReel
Brand: Vishay / Siliconix
Configuration: Single
Fall Time: 5 ns
Forward Transconductance – Min: 15 S
Product Type: MOSFET
Rise Time: 5 ns
3000
Subcategory: MOSFETs
Transistor Type: 1 N-Channel
Typical Turn-Off Delay Time: 35 ns
Typical Turn-On Delay Time: 16 ns
Unit Weight: 506.600 mg
